Chatreey IT12-12900H
Updated on
The Chatreey IT12-12900H puts an Intel Core i9-12900H, Intel’s 12th-generation mobile i9, into a case that fits beside a monitor stand. It suits a desk with no room for a tower and a workload that still wants desktop throughput.
Thunderbolt 4 makes an external GPU enclosure a workable upgrade path. Two 2.5 Gigabit Ethernet jacks cover homelab and routing duty, and the mix of M.2 slots and a SATA bay lets a fast boot drive and a bulk drive live in the same box.
A 14-core chip, three drive positions, and no VESA mount
The aluminum shell measures 6.5 by 5.2 by 2.5 inches. Ports are laid out for easy access on a machine that will sit in the open. There is no VESA mount, so the machine sits on the desk unless you add a third-party bracket.
The i9-12900H is an Alder Lake design with 6 performance cores, 8 efficient cores, 20 threads, and a 5.0 GHz boost ceiling when thermals allow. Its PassMark score of roughly 28,524 is in the same range as older desktop parts, and it holds up under video encoding, compilation, and virtualization. The reviewed build ships 32GB of DDR4 and accepts up to 64GB, which covers several virtual machines or a heavy editor-plus-browser session.

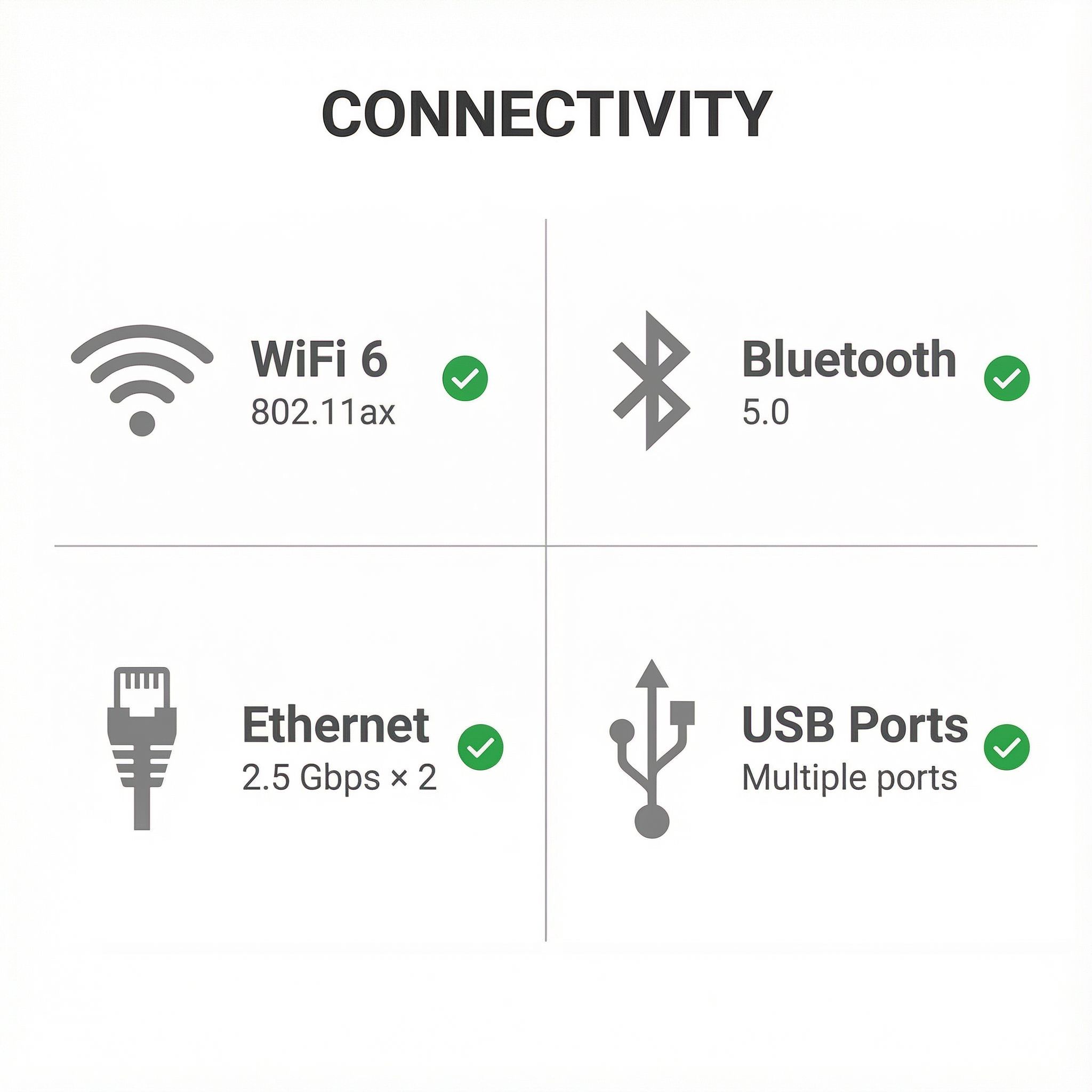

The Thunderbolt 4 port carries 40 Gbps, enough to drive a mid-range eGPU such as an RTX 4060 Ti through a compatible enclosure. The two 2.5 Gigabit Ethernet ports can be bonded for throughput or split across two networks, and WiFi 6 with Bluetooth 5.0 handles wireless clients. Two HDMI outputs and a DisplayPort support the multi-monitor setups common in office and studio work.
Both M.2 slots take NVMe drives, one at PCIe 4.0 and one at PCIe 3.0. The 2.5-inch bay accepts an SSD or a mechanical drive, so bulk capacity for media libraries or backup archives costs little to add. Three drive positions let an owner keep the operating system, working files, and archives on separate disks instead of partitioning one SSD.
Reviewer Insights
Western tech media has covered the IT12 thinly, since Chatreey sells mainly into Asian markets. What exists is spec confirmation rather than lab testing.
NotebookCheck confirms the spec sheet
NotebookCheck’s product announcement highlighted the IT12 as a mini PC “now available with a significantly more powerful processor,” noting that buyers can “select up to 64 GB of RAM and a 4 TB SSD.” Their coverage confirmed the dual 2.5 Gigabit Ethernet configuration, Thunderbolt 4 support, and the combination of PCIe 3.0 and PCIe 4.0 M.2 slots. NotebookCheck published no benchmark numbers of its own.
Topton and Kingnovy sell the same board
Topton and Kingnovy sell boxes built on the same ODM board as the Chatreey IT12. Independent testing of this specific model is thin, so a buyer weighing it against a GEEKOM or Minisforum box has the spec sheet to go on.
Pros and Cons
| Pros | Cons |
|---|---|
| 20 threads chew through encoding and virtual machine work in a box this size | Stock 90W adapter may be insufficient for heavy loads |
| Thunderbolt 4 keeps an eGPU upgrade open later | No VESA mount, so the box takes up desk space |
| Dual 2.5GbE covers routing and link aggregation without a USB adapter | The fan is audible once the i9 boosts |
| Three drive positions keep bulk files off the boot SSD | Warranty and RMA get awkward on an imported unit |
| Memory can double to 64GB without changing the board | Almost no independent benchmark coverage to check the specs against |
Chatreey IT12-12900H Comparison Chart
 Chatreey IT12-12900H | |
| Price | List Price: $769.99 Amazon Prices: |
| Version | 32GB/1TB/Intel i9-12900H |
| Performance Rating | 5.8 |
| Operating System | Windows 11 |
| Processor | Fourteen-core 3.80 Ghz (max 5.00 Ghz) Intel Core i9-12900H |
| GPU | Integrated Intel Iris Xe Graphics |
| RAM | 32 GB |
| Internal Storage | 1 TB |
| Dimensions width x length x thickness | 6.5 x 5.2 x 2.5 inches (165.1 x 132.08 x 63.5 mm) |
| Weight | unknown |
| WiFi | Wi-Fi 6 (802.11ax) |
| Bluetooth | Bluetooth 5.0 |
| Ethernet | 2 Ethernet ports at 2.5 Gbps |
| HDMI | 2 Full-Size HDMI Ports |
| DisplayPort | 1 DisplayPort |
| VGA | No VGA Ports |
| USB Ports | 1 USB 2.0, 4 USB 3, 1 USB-C |
| Thunderbolt Ports | 1 |
| OCuLink | No |
| Internal SATA Ports | 1 SATA port, includes 2.5" drive bay |
| Card Reader | No Card Reader |
| Headphone Jack | combo |
| Fanless | No |
| VESA Mount | No |
| In the Box | Mini PC, power adapter, SATA adapter, HDMI cable, user manual |
| Expandability | Second M.2 SSD slot, RAM upgradeable to 64GB, 2.5-inch SATA bay, Thunderbolt 4 for eGPU |
Related Mini PCs
-
Chatreey IT13-13900HThe Chatreey IT13-13900H Mini PC delivers impressive productivity performance with its i9-13900H… -
Beelink GTi12 UltraThe Beelink GTi12 Ultra is a Core i9-12900H mini PC with two DDR5 slots (64GB max), two PCIe 4.0… -
GMKtec Nucbox M4 Mini PCThe GMKtec NucBox M4 pairs an 11th-gen Intel Core i9-11900H with DDR4 (up to 128GB), an M.2 NVMe… -
Beelink EQI13 PROThe Beelink EQI13 PRO pairs an Intel Core i7-13620H (10 cores, 16 threads) with 32GB of DDR4 and a… -
GEEKOM XT1 MegaThe GEEKOM XT1 Mega is a compact Meteor Lake mini PC (Intel Core Ultra 5 125H or Ultra 9 185H,… -
GEEKOM XT12 ProThe GEEKOM XT12 Pro is a compact aluminum mini PC with an Intel Core i9-12900H (or i7-12650H), 32GB…
Upgrades
Accessories that fit the Chatreey IT12-12900H's USB4 or Thunderbolt ports.
Core X V2
A Thunderbolt 5 enclosure that Razer lists as working with Thunderbolt 4 and USB4 hosts; it fits a four-slot card and needs an ATX power supply.
DEG2 eGPU Dock
Connects over USB4 or Thunderbolt 5, with an OCuLink input behind a switch, and adds an M.2 slot; it needs an ATX or SFX power supply.
Breakaway Box 850 T5
Has an 850W power supply built in, so only the graphics card is extra, and works with Thunderbolt 4 and USB4 Windows PCs.
TS4 Thunderbolt 4 Dock
An 18-port dock that CalDigit lists for Thunderbolt 4 and USB4 hosts, with 2.5GbE and a DisplayPort 1.4 output.
TBT4-UD5 Thunderbolt 4 Dock
Two HDMI ports drive two 4K60 monitors from one Thunderbolt 4 or USB4 port on a Windows PC.
Revodok Max 208 Thunderbolt 4 Dock
Adds three Thunderbolt 4 ports for dual 4K60 displays plus gigabit Ethernet; it has no HDMI port, so monitors connect over USB-C or an adapter.
Frequently Asked Questions
Can I connect an external GPU to the Chatreey IT12?
Yes. The Thunderbolt 4 port supports external GPU enclosures, and a mid-range card such as an RTX 4060 Ti is a realistic pairing for gaming and GPU-accelerated work. The port’s 40 Gbps is the practical bandwidth ceiling.
How does the i9-12900H compare to desktop processors?
It is a mobile chip that performs on par with mid-range desktop parts. A PassMark score around 28,524 puts it above the Intel Core i5-12400 desktop chip, with strong multi-threaded results for productivity work.
Is the 90W power adapter sufficient?
For typical productivity use, the included 90W adapter works adequately. However, some users report shutdowns during sustained heavy workloads that push both CPU and storage simultaneously. Consider a higher-wattage adapter if you plan intensive computational tasks.
Where can I buy the Chatreey IT12?
Chatreey sells mostly through direct import channels and platforms such as AliExpress rather than major Western retailers, so budget for import duties and longer shipping.
Can I upgrade the RAM and storage?
Yes to both. Memory goes to 64GB, and storage expands through the two M.2 slots (one PCIe 4.0, one PCIe 3.0) plus the 2.5-inch SATA bay.
How loud is the fan during operation?
It is audible during demanding tasks and unobtrusive during ordinary office work. The cooling ramps up as the i9-12900H holds higher clock speeds under load.
A homelab box for buyers willing to import
The IT12 earns its place on a desk that already has a switch behind it and a job that keeps every thread busy, whether that is virtual machines or traffic moving between two networks. A buyer with lighter needs pays for networking and expansion that will sit idle.
Chatreey publishes little, and few labs have tested this model, so the buying decision rests on the specification sheet. A warranty claim goes back through an import channel, which takes time. Buyers who want a support page and a stack of lab reviews behind the purchase will be happier with GEEKOM or Minisforum.
Our mini PC comparison chart lets you filter and sort across the full catalog to see how it stacks up.
