ACEMAGICIAN AM06 Pro Mini PC

The ACEMAGICIAN AM06 Pro is a compact AMD Ryzen mini PC aimed at everyday productivity, media, and light gaming. The configurations on this page run the 8-core Ryzen 7 5700U or 5800U (up to 4.3GHz), both with integrated Radeon graphics, 16GB or 32GB of DDR4, and a 512GB NVMe SSD that you can expand with a second 2.5-inch SATA drive. It ships with Windows 11 Pro and covers the practical ports: Wi-Fi 6, Bluetooth 5.2, dual LAN (one 2.5GbE, one 1GbE), HDMI, DisplayPort, and USB-C, plus a VESA mount in the box. (This is the ACEMAGICIAN-branded AM06 Pro, distinct from the identically-named KAMRUI AM06 Pro.)

Pros and Cons

Related Videos

ACEMAGICIAN AM06 Pro Mini PC Comparison Chart

	ACEMAGICIAN AM06 Pro Mini PC	ACEMAGICIAN AM06 Pro Mini PC	ACEMAGICIAN AM06 Pro Mini PC
Price	List Price: $429.00 Amazon Prices: Check Price on Amazon	List Price: $459.00 Amazon Prices: Check Price on Amazon	List Price: $389.99 Amazon Prices: Check Price on Amazon
Version	16GB/512GB/AMD RYZEN 7 5700U	32GB/512GB/AMD RYZEN 7 5700U	16GB/512GB/AMD Ryzen 7 5800U
Performance Rating	4.2	4.6	4.4
Operating System	Windows 11 Pro	Windows 11 Pro	Windows 11 Pro
Processor	Octa-core 1.80 Ghz (max 4.30 Ghz) AMD Ryzen 7 5700U	Octa-core 1.80 Ghz (max 4.30 Ghz) AMD Ryzen 7 5700U	Octa-core 1.90 Ghz (max 4.40 Ghz) AMD Ryzen 7 5800U
GPU	Integrated Radeon RX Vega8 Graphics	Integrated Radeon RX Vega8 Graphics	Integrated Radeon RX Vega8 Graphics
RAM	16 GB	32 GB	16 GB
Internal Storage	512 GB	512 GB	512 GB
Dimensions width x length x thickness	5.19 x 5.19 x 1.96 inches (131.83 x 131.83 x 49.78 mm)	5.19 x 5.19 x 1.96 inches (131.83 x 131.83 x 49.78 mm)	5.19 x 5.19 x 1.96 inches (131.83 x 131.83 x 49.78 mm)
Weight	unknown	unknown	unknown
WiFi	Wi-Fi 6 (802.11ax)	Wi-Fi 6 (802.11ax)	Wi-Fi 6 (802.11ax)
Bluetooth	Bluetooth 5.2	Bluetooth 5.2	Bluetooth 5.2
Ethernet	2 Ethernet ports at 2.5 Gbps	2 Ethernet ports at 2.5 Gbps	2 Ethernet ports at 2.5 Gbps
HDMI	1 Full-Size HDMI Port	1 Full-Size HDMI Port	1 Full-Size HDMI Port
DisplayPort	1 DisplayPort	1 DisplayPort	1 DisplayPort
VGA	No VGA Ports	No VGA Ports	No VGA Ports
USB Ports	2 USB 2.0, 2 USB 3, 1 USB-C	2 USB 2.0, 2 USB 3, 1 USB-C	2 USB 2.0, 2 USB 3, 1 USB-C
Thunderbolt Ports	No	No	No
OCuLink	No	No	No
Internal SATA Ports	1 SATA port, includes 2.5" drive bay (Support for adding a 2.5 inch SSD/HDD)	1 SATA port, includes 2.5" drive bay (Support for adding a 2.5 inch SSD/HDD)	1 SATA port, includes 2.5" drive bay (Support for adding a 2.5 inch SSD/HDD)
Card Reader	No Card Reader	No Card Reader	No Card Reader
Headphone Jack	combo	combo	combo
Fanless	No	No	No
VESA Mount	Yes	Yes	Yes
In the Box	Mini PC, Power Adapter, HDMI Cable VESA mount, User Manual	Mini PC, Power Adapter, HDMI Cable VESA mount, User Manual	Mini PC, Power Adapter, HDMI Cable VESA mount, User Manual
Expandability	Supports addition of a 2.5 inch drive. Memory upgradeable to 64GB.	Supports addition of a 2.5 inch drive. Memory upgradeable to 64GB.	Supports addition of a 2.5 inch drive. Memory upgradeable to 64GB.

Dual LAN and four-display output in a 5.19-inch square

At 5.19 inches square and 1.96 inches thick, the AM06 Pro fits on a desk or behind a monitor on its VESA mount. The Radeon Vega graphics handle daily tasks and casual gaming; Lon Seidman confirmed four simultaneous 4K60 displays work, though the system gets sluggish driving all four at once, so treat that as a maximum rather than a comfortable target.

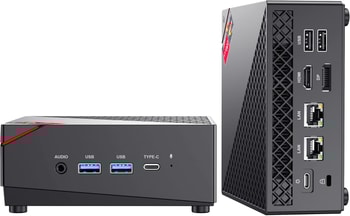

For ports it has two USB 3.0, two USB 2.0, a USB-C, HDMI, and DisplayPort. Networking is dual LAN, with one 2.5GbE port (an Intel I226 controller Lon measured near its rated speed) and one 1GbE, plus Wi-Fi 6 and Bluetooth 5.2.

The single DDR4 SO-DIMM slot takes up to 64GB, the M.2 slot holds an NVMe SSD up to 2TB, and there is a bay and cable for a 2.5-inch SATA drive. That SATA bay is the upgrade reviewers and owners recommend first, since the stock 512GB NVMe fills quickly.

Reviewer Insights

The AM06 Pro ships under several AMD chips, and the two reviewers below tested different ones. Lon Seidman ran the Ryzen 7 5800U build (the top configuration sold on this page), while CyberCPU Tech benchmarked a Ryzen 5 5600U unit, a lower step that is not one of the configurations listed here. The 5600U is a 6-core/12-thread part with Radeon RX Vega 7 graphics; the 5700U and 5800U builds on this page are 8-core/16-thread with Vega 8, so treat CyberCPU’s frame rates as a conservative floor rather than a match for the higher-tier variants. For reference, PassMark multi-thread scores put the 5800U at about 18,344 and the 5700U base build at about 15,853. These are 2021-era mobile chips (the 5800U is a Zen 3 “Cezanne” part; the 5700U is a Zen 2 “Lucienne” rebadge), so in 2026 they read as capable everyday processors rather than current-generation performers.

Lon.TV: Measured Performance on the Ryzen 7 5800U

Lon Seidman from Lon.TV reviewed the Ryzen 7 5800U configuration and came away impressed for the price. “It performs pretty well and it’s got some neat features,” he says early on, and his measurements back that up. On the BrowserBench Speedometer web benchmark the AM06 Pro scored 293, which he placed “right in line with what we’ve seen on other machines powered by recent Intel and Ryzen processors.” General computing felt quick to him: “As you can see, things pop up here very quickly, due in part to the processor and the RAM we’ve got on board.” Even 4K60 YouTube playback dropped only two frames in his testing.

On the 3DMark Time Spy test the machine returned a score of 1442, which Seidman called “a little behind what you would get out of a Steam Deck” but comparable to the Ryzen 7 4800U-based Beelink SER4. In actual games he saw about 25 fps in No Man’s Sky at 1080p on the lowest settings, then 45 to 50 fps in Red Dead Redemption 2 once he dropped to 720p at the lowest preset, which he called “very very playable.” His rule of thumb: most titles land between 40 and 60 fps at 720p. A 3DMark stress run passed at 98 percent, which he read as a sign the cooling holds performance steady under sustained load.

The fan stays quiet most of the time and only spikes occasionally, producing what he described as “more of a wind tunnel effect”; crucially, it does not constantly ramp up and down the way many mini PCs do. He confirmed four simultaneous 4K60 displays worked (though the system got “a little sluggish” driving all four at once), measured the 2.5GbE port (an Intel I226 controller) near its rated speed, and found Ubuntu detected everything out of the box for “a very nice Linux experience.” His one caution is support: ACEMAGIC is not a brand he recognizes, so he advises buying with that risk in mind and keeping good backups.

CyberCPU Tech: Gaming Benchmarks on the Ryzen 5 5600U

CyberCPU Tech’s review, titled “Want An Affordable Ryzen PC That Plays Games?” on YouTube, is a benchmark-heavy look at a Ryzen 5 5600U unit (again, a tier below the 5700U and 5800U builds on this page). “However, with a Ryzen 5 5600U, this is a powerful little mini desktop PC that you absolutely can play games on,” he concludes. His per-game numbers, all captured on that 5600U with Vega 7 graphics:

• Black Mesa, 1080p high: 53.3 fps average, 38.8 fps 1% low
• GTA 5, 1080p high: 47.3 fps average, 37.7 fps 1% low
• Shadow of the Tomb Raider, 720p low: 31.7 fps average, 26.9 fps 1% low
• Red Dead Redemption 2, 720p low: 36.3 fps average, 29.8 fps 1% low
• Cyberpunk 2077, 720p low: 31.8 fps average, 21 fps 1% low

The older and lighter titles (Black Mesa, GTA 5) clear 60 fps with a small settings tweak; the heavier modern games (Cyberpunk, Tomb Raider) sit just above 30 fps with no headroom left at 720p low. On hardware he echoed a common complaint about the front-mounted audio jack (“it’s kind of annoying that this is becoming a trend with mini PCs to not have an audio port in the rear”) and recommended one upgrade above all: “The only thing I recommend is adding a secondary hard drive,” since the 512GB SSD fills quickly with games installed. Because the 5700U and 5800U builds pair more cores with the stronger Vega 8 graphics, they should match or exceed every figure above.

Customer Reviews

Amazon buyers rate it well, and the praise lands on everyday productivity rather than gaming. Verified buyer S. J. wrote, “Fast and well equipped. It won’t play games very well, particularly at 4K, but as a productivity PC, it is great.” Upgrades and noise come up often too. Verified buyer Rick Williams reported using it for everyday work and as a media server, noting “Very quiet and easy to put anywhere is a bonus. I added a second ssd with ease and upgraded the wifi card.” Shawn, another verified buyer, added SATA SSDs and built a three-node Proxmox cluster with the units. A couple of reviewers also mention it runs warm under load.

In a three-star review, verified buyer Dion B. flagged a software concern out of the box: “I ran the whole system with Malwarebytes, and was faced with over a dozen pieces of malware, preinstalled.” A one-star reviewer, Jade Fance, reported the display stopped working after light use and described unhelpful support, and a four-star reviewer found that getting games to run took an unusual amount of setup. If you plan to wipe the stock Windows install or lean on the machine for gaming, factor those experiences in. For productivity, home-lab, and media-server use, the reviews skew positive.

A budget desktop for productivity and home-lab work

The 8-core Ryzen and Radeon Vega graphics cover everyday work and casual or older games, the dual LAN and four-display output suit multitasking and small servers, and the 64GB RAM ceiling plus the M.2 and SATA slots give it room to grow. Owners running it for work, media serving, and Proxmox clusters are the happiest with it.

Skip it for serious gaming. CyberCPU’s numbers put heavier modern titles around 30 fps at 720p low, and there is no room for a dedicated GPU. The stock 512GB SSD fills quickly, so add a 2.5-inch drive early, and ACEMAGIC is a lesser-known white-label brand, so buy on a platform with easy returns and keep good backups. ACEMAGIC’s own store now lists the AM06 Pro only as sold out, and it no longer offers the 5800U build. To compare it with other models, use Starry Hope’s Mini PC Comparison Chart.
